Grinding Machines
Rail Profile Grinding Machine
Main Features
- Servo Motor, 3Phase Motor, 220V, 50 or 60Hz.
- Minimizing reduction of cycle time: Specialized permanent magnetic chuck & rail alignment device & machining program connection.
- Specially fabrication nozzle by model enables ultra-close installation and concentrated spray of grinding fluid.
- The nozzle automatically approaches when the grinding wheel becomes smaller in size by dressing & grinding.
- Automatic loading & unloading system enables simple unmanned operation.
- Air cylinder & cleaning device & program connection maintain always a clean permanent chuck.
- Grinding interactive program.
- Based on #25, cycle time 26 minutes including loading & unloading
Automatic Loader
Chuck Cleaning Device

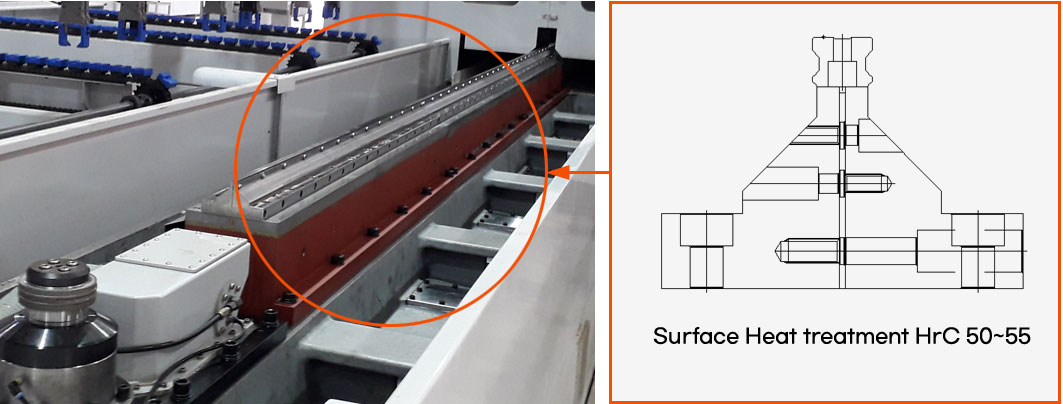

Rail Permanent Chuck

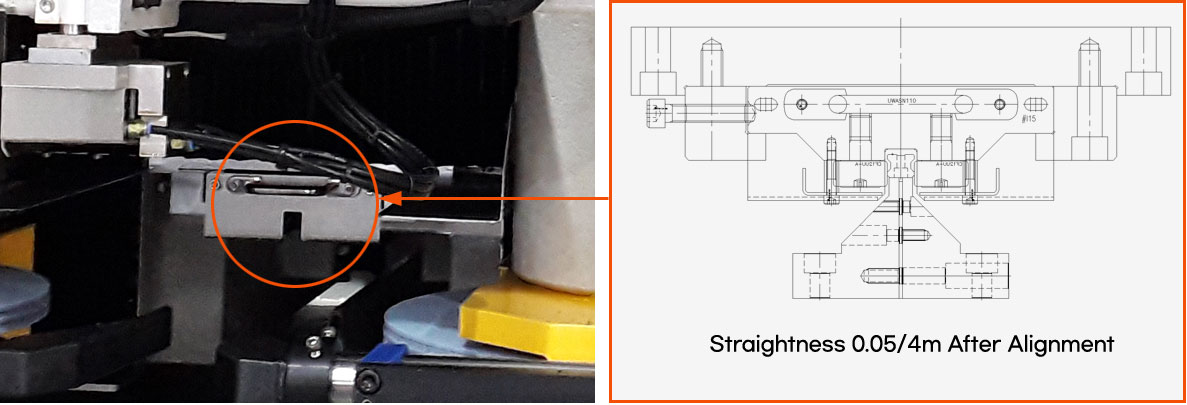

Rail Alignment Device
Machining Video
Specifications
| Model Number | #15,20,25,30,35,45,55,65 |
|---|---|
| Length | 4000mm |
| Travel Stroke (U,X,Y,Z) | U 6300, X-Y 240, Z 205 |
| Coolant Tank | 910+380 Liter |
| Power Required | 60Kw |
| Machine Weight | 40ton |
| Machine Size | 15900 x 4800 x 3100H |
Dimension
